Overview EEG (Electroencephalography) Enobio 8

Enobio 8

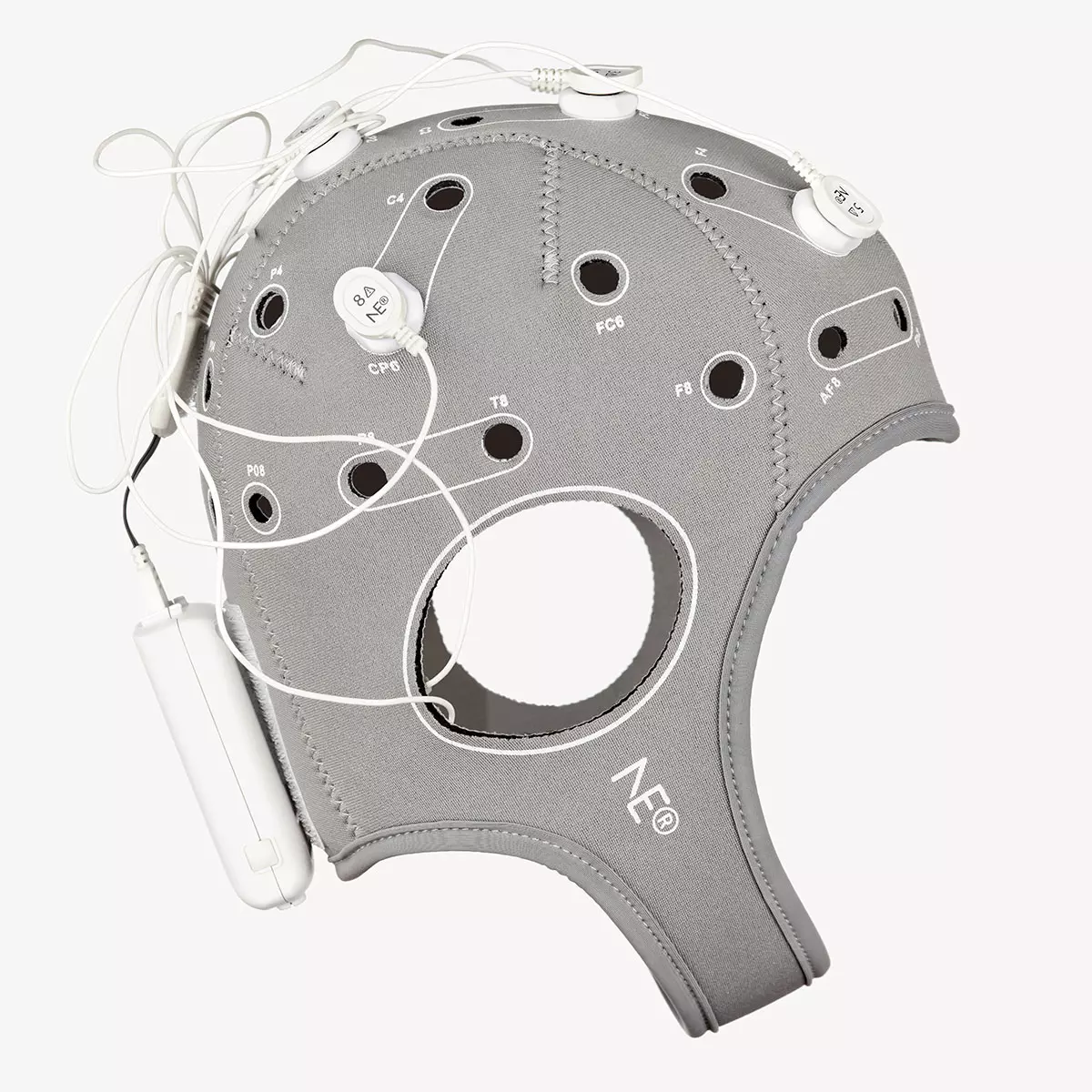

Enobio® is a wearable, wireless electrophysiology sensor system for the recording of EEG. Using the superb Neuroelectrics Cap, Enobio 8 is ideal for out-of-the-lab applications.

The Neuroelectrics Enobio 8 EEG headset is compatible with the iMotions EEG Module.

Precise digital signals

Easy and Flexible Dry or Wet Set-ups

Wireless and Truly Mobile

Available for both Clinical and Research Applications

Lifetime Customer Support & Multiple Warranty Options

Enobio 8 essentials included with the product:

NIC2

End-to-end management of tES & EEG interventions and experiments

Neoprone headcap

A comfortable cap with 39 tES/EEG electrode placeholders and 10-10 system annotations

NG Geltrode

Screwable EEG monitoring electrode for high-quality wet setups

10 Electrode Cable

Electrode cable for custom montages of up to 8 tES/EEG channels

Specifications

Hardware
Number of channels 8
Bandwidth 0 to 125 Hz (DC coupled)
Sampling rate 500 SPS
Dynamic range 24 bits – 0,05 microvolt (µV)
Measurement noise < 1 µV RMS
Input impedance >1 GΩ
CMRR -115 dB
Communication Wi-Fi IEEE 802.11 g or USB
3 axes accelerometer Yes (100 S/s)
MicroSD card for offline recording Yes
Rechargeable system using Li-Ion battery Yes
Device dimensions 89.1 mm x 61.1 mm x 23.8 mm
Device weight 78 g
Allows for simultaneous stimulation (tDCS and TMS compatible) Yes
Operating time
WiFi communication 6.5 hours
MicroSD recording 20.0 hours
USB communication 24.0 hours
Software
File output Proprietary NEDF or EDF+ & ASCII file formats
Real-time EEG monitoring Yes
Scalp and cortical mapping of brain activity Yes
Spectrum, spectrogram and band power plots Yes
Raw data streaming output Lab Streaming Layer (LSL) outlets or TCP/IP port
EEG markers sources Lab Streaming Layer (LSL) inlets, TCP/IP, keyboard,TTL triggers
Timestamp synchronization for precise hyperscanning Yes
Compatible with Windows Vista/7/8/10 and Mac OS X (> Snow Leopard) Yes
3rd party EEG software compatibility OpenVibe, BCI2000, NeuroGuide (via Lab Streaming Layer)
Offline EEG analysis MatLab (EEGLAB Plugin), Python (NEPy library)
Investigational applications via Software Development Kit Yes
Networked system control with MatNIC toolbox Yes
Headset
Available headcaps 6 sizes: 42/46/49/54/57/60cm
EEG custom montages Headcaps available with 39 or 64 of 10-10 EEG system positions
Set-up time using ge 8-12 minutes
Set-up time using dry electrodes 1-2 minutes

Manual
