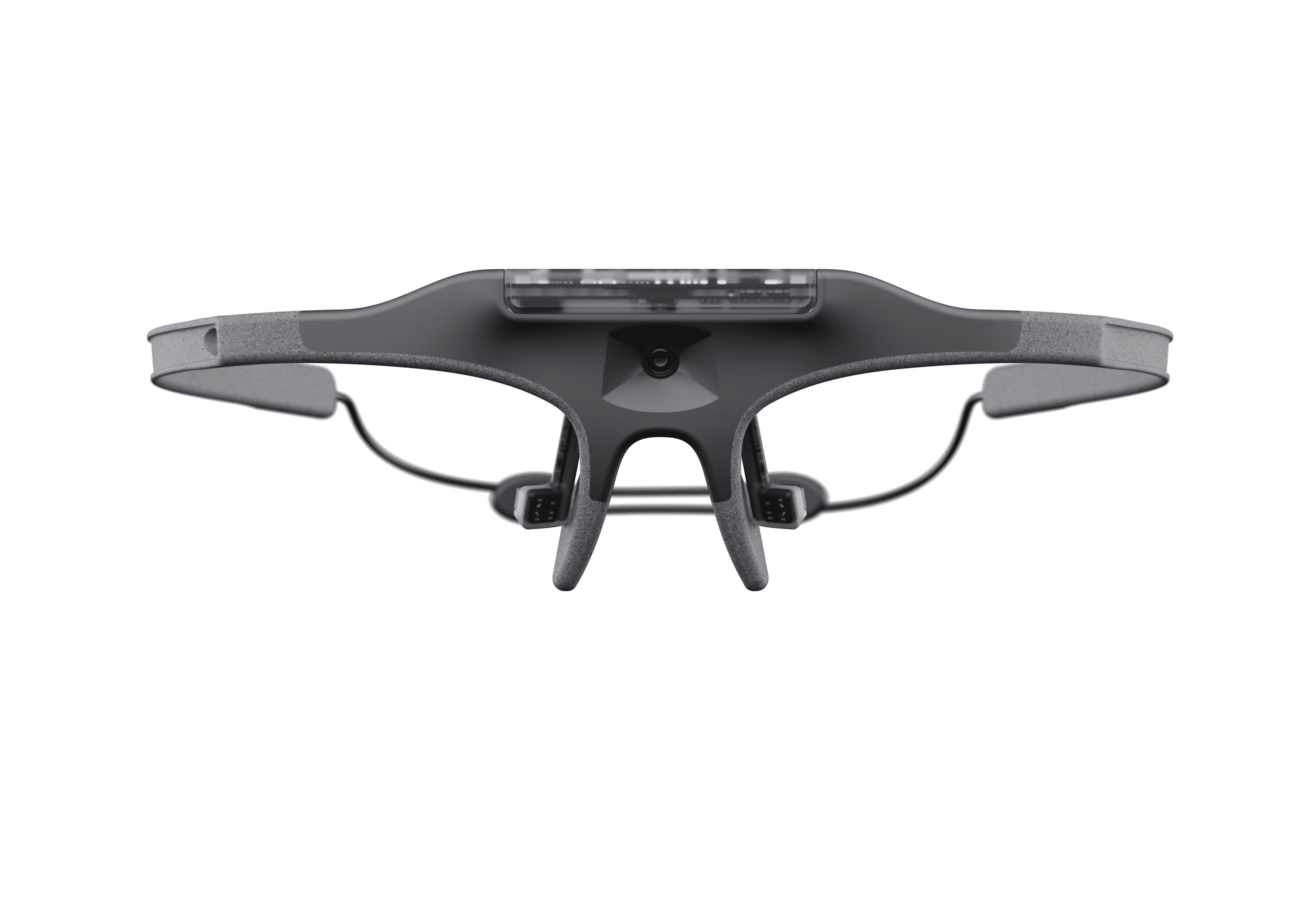

Ready set go! Neon Eye Tracking Glasses

In Stock

The solution for eye tracking research in sports and other high dynamic movement activities.

  • Machine learning powered eye tracking system.
  • Adjustable headband form factor. Fits well under helmets and other headwear.
  • Android device for real-time gaze estimation, wearer management, recording, and real-time streaming.

The Ready set go! – Neon Eye Tracking Glasses are compatible with the iMotions Eye Tracking Glasses Module.

Specifications

Dimensions

H41.5 x W155 x D145 x B21 mm / Max. circumference: 670 mm

Weight

30 g (including Neon module)

Material

PA12 Nylon, CNC machined anodized aluminum

No Calibration

Neon starts working the second you put it on. No need to fiddle around with nose pads or camera positions. No calibration is required before or during a recording.

Every Environment

Neon works in every environment and during all activities. From a bright sunny day to complete darkness.

Every Subject

Neon works for every subject. No matter what age, gender, or ethnicity. Eye makeup and contact lenses – no problem!

Scene Camera

The scene camera deserves special attention. It has a super wide field of view – 132° x 81° – capturing full HD video with a resolution of 1600 x 1200 px.

Audio

Integrated microphones add another dimension to understanding human behavior. Capture high quality audio to gain insight into the relationship between seeing, saying, and listening.

And much more

Built-in 110 Hz IMU

Gaze data

Fixations

Blink events

Eye rotation

Eye position

Pupil Diameter

Find out more about the technology

The Neon Module is all the eye tracking hardware you need in a small package.

High-speed eye cameras, wide-angle scene camera, stereo microphones, and IMU all encased in water-resistant silicone. The modular design enables a wide variety of frame shapes, sizes, and styles specific to your research needs. The module can be bought on its own or bundled together with one of the many frame options.

Neon Module

7 g
W: 40mm
H: 35mm
D: 10mm

Specifications

Model Name Ready Set Go!
Accuracy 1.8 deg uncalibrated
1.3 deg with offset correction
Performance Evaluation Neon Accuracy Test Report – An Evaluation of Lab and In-The-Wild Performance
Binocular Eye tracking Yes
Slippage Compensation Slippage invariant. Deep learning powered.
Eye Tracking Technology Real time neural network
Scene Camera FOV 1600 x 1200 @30Hz
H: 132°, V: 81°
Eye Camera 2 IR Eye Cameras
192 x 192 @200 Hz
IMU Accelerometer, Magnetometer, Gyroscope
Microphone Dual microphones
Calibration Calibration-free
Battery Recording Time Up to 4 hours
25+ hours of recording storage
Cable USB-C
Computing Device Mobile computing device: Motorola Edge 40 Pro
Real-time Data 2D gaze points in scene camera coordinates at 200 Hz.
Full head pose, accelerometer and gyro data at 110Hz.
IR eye video showing fused eye regions at 200 Hz.
RGB scene video at 30 Hz.
Post-hoc Data Fixation & blink data
Pupillometry data and eye state (Available in Pupil Cloud)
Frame Material PA12 Nylon, CNC machined anodized aluminum
Lens Material Plano CR-39 Anti-Scratch
UV filter, Anti-Reflective,
Dust and water repelling coating.
Sample Recordings Download sample recording
Frame Dimensions H41.5 x W155 x D145 x B21 mm / Max. circumference: 635 mm
Weight 30g (including the Neon module)
