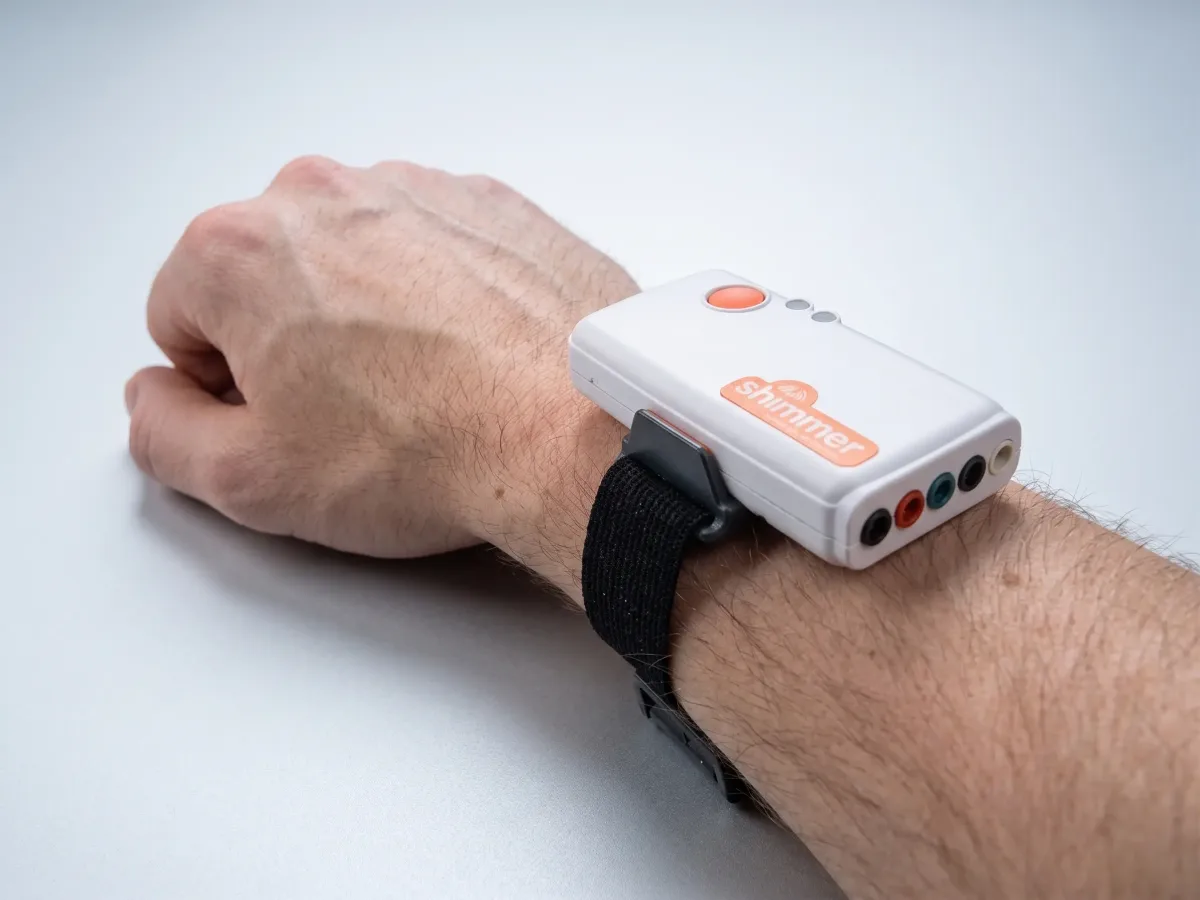

Shimmer3 EMG

Hardware Specifications

The Shimmer3 EMG (Electromyography) sensor is a wireless solution for recording the electrical activity of muscle contractions with two channels of EMG data, which can be measured simultaneously with 10DOF kinematic data. The unit also contains ECG functionality as standard.

The Shimmer3 EMG device is compatible with the iMotions ECG / EMG Module.

Cleaning infographic from Shimmer

Shimmer Specs
Model
Shimmer3 EMG
Number of channels
2 channel EMG solution
Input protection
Input Ch1N, Input Ch1P, Input Ch2N, Input Ch2P, Reference (Ref)
Gain
Software configurable (1, 2, 3, 4, 6, 8, 12)
Input differential
Approximately 800mV (for gain = 6)
Bandwidth
8.4 kHz
Input protection
ESD and RF/EMI filtering, Current limiting,
Inputs
Inputs include defibrillation protection (survive only, not repeat)
Weight
31 g
Dimensions
65 x 32 x 12 mm
EEPROM memory
2048 bytes
Recommended bluetooth adapter
Kensington K33956AM USB 2.0 Bluetooth 4.0 (be sure to disable your machine’s internal bluetooth)
Connection
All Hospital-Grade 1mm Touchproof IEC/EN 60601-1 DIN42-802 jacks
Shimmer3 EMG
