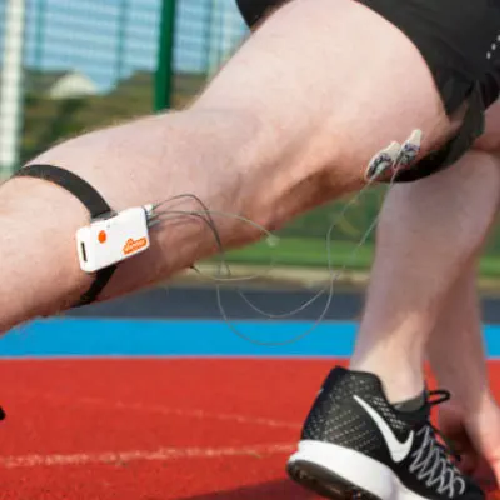

Shimmer3 EMG
The Shimmer3 EMG (Electromyogram) unit provides a configurable digital front-end, optimized for the measurement of physiological signals for EMG.
The Shimmer3 EMG sensor measures and records the electrical activity associated with muscle contractions, assesses nerve conduction, muscle response in injured tissue, activation level, or can be used to analyze and measure the bio-mechanics of human or animal movement.
Specifications
| Model | |
|---|---|
| Model | Shimmer3 EMG |
| Connection | |
| Connection | All Hospital-Grade 1mm Touchproof IEC/EN 60601-1 DIN42-802 jacks |
| Channels | 2 channel EMG solution |
| Input | |
| Input types | Inputs include defibrillation protection (survive only, not repeat) |
| Bandwidth | 8.4 kHz |
| Input protection | ESD and RF/EMI filtering, Current limiting, |
| Input differential | Approximately 800mV (for gain = 6) |
| Device attributes | |
| Weight | 31 g |
| Dimensions | 65 x 32 x 12 mm |
| EEPROM memory | 2048 bytes |
| Recommendations | |
| Bluetooth adapter | Kensington K33956AM USB 2.0 Bluetooth 4.0 (be sure to disable your machine’s internal bluetooth) |
