Overview ECG (Electrocardiography) Shimmer3 ECG Kit

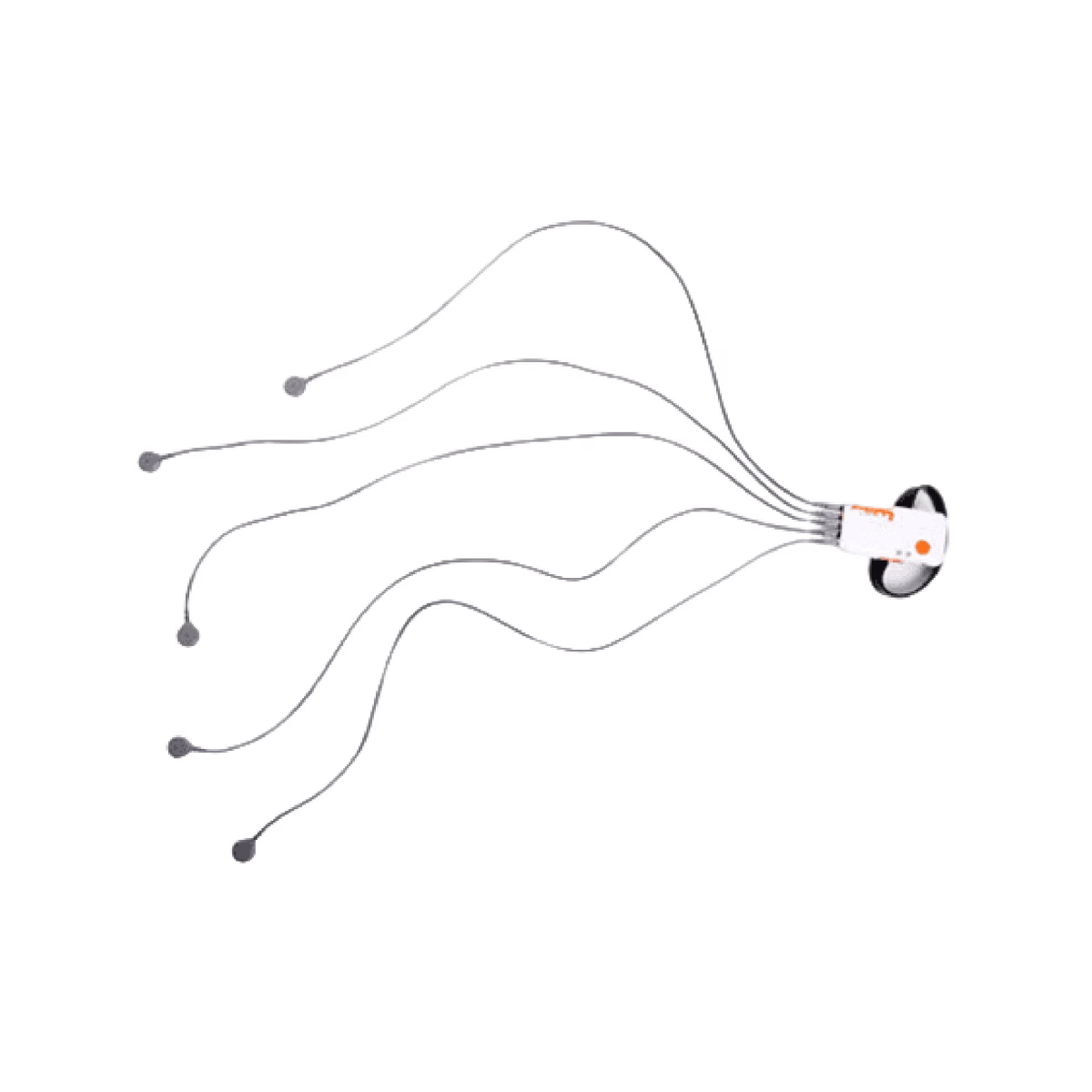

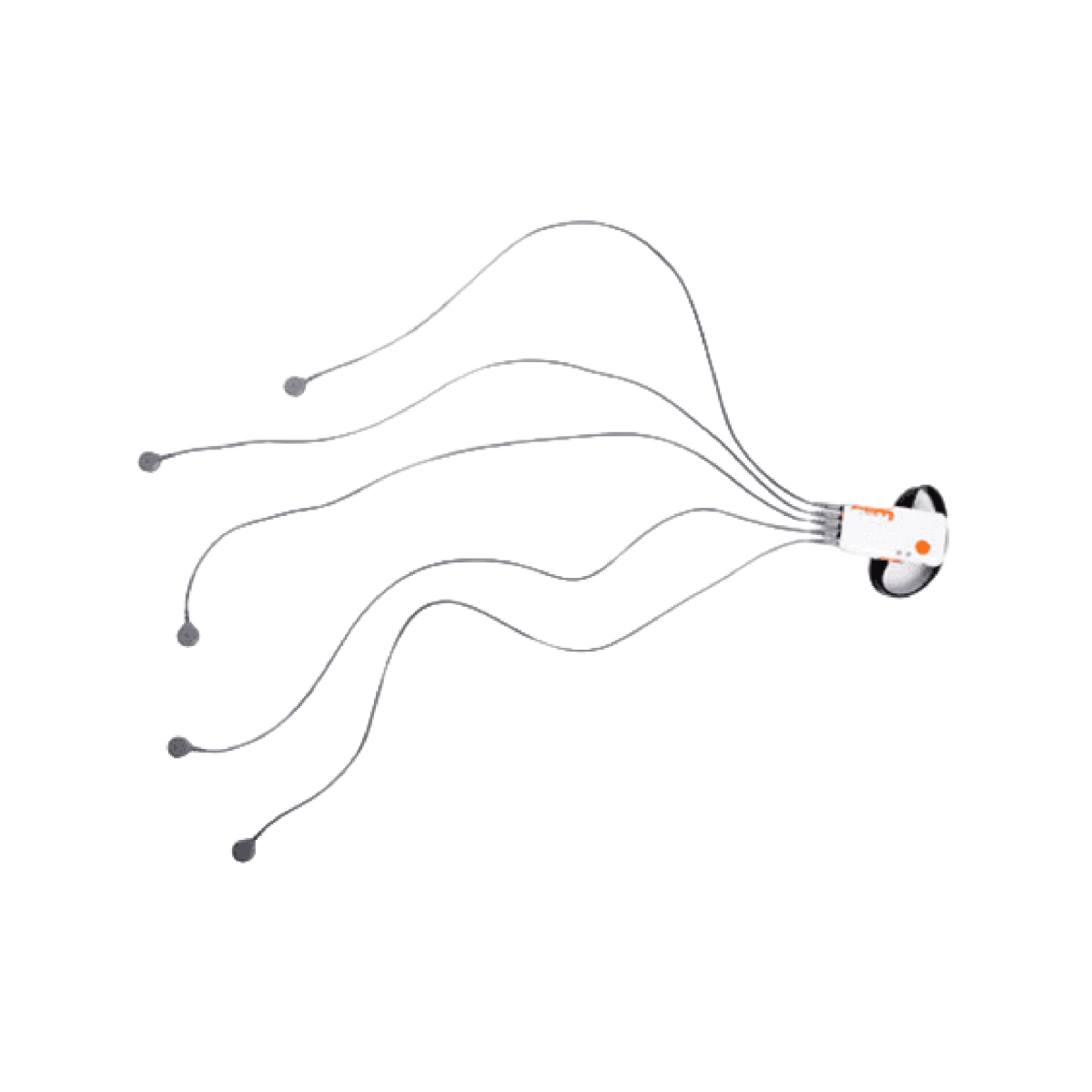

Shimmer3 ECG Kit

The Shimmer3 ECG device provides optimized measurements for a five-wire, four-channel ECG (Electrocardiogram) solution measuring bipolar limb leads and user’s choice of V1 – V6. The device boasts optimal data quality with integrated 10DoF inertial sensing via accelerometer, gyroscope, magnetometer and altimeter. It also provides highly accurate and scientifically reliable raw data to allow for complete control over capture and interpretation of sensed data in real time. The ECG Unit also contains EMG functionality as standard.

Specifications

Model Shimmer3 ECG
Number of channels Five-wire, 4 channel ECG solution
Input protection Input RA, iIput LA, Input LL, Input Vx, Reference (RL)
Gain Software configurable (1, 2, 3, 4, 6, 8, 12)
Input differential Approximately 800mV (for gain = 6)
Bandwidth 8.4 kHz
Input protection ESD and RF/EMI filtering, Current limiting, ESD and RF/EMI filtering, Current limiting,
Input Inputs include defibrillation protection (survive only, not repeat)
Weight 31 g
Dimensions 65 x 32 x 12 mm
EEPROM Memory 2048 bytes
Recommended bluetooth adapter Kensington K33956AM USB 2.0 Bluetooth 4.0 (be sure to disable your machine’s internal bluetooth)
Connection All Hospital-Grade 1mm Touchproof IEC/EN 60601-1 DIN42-802 jacks
