Overview Eye trackingEye tracking glasses All Clear – Neon Eye Tracking Glasses

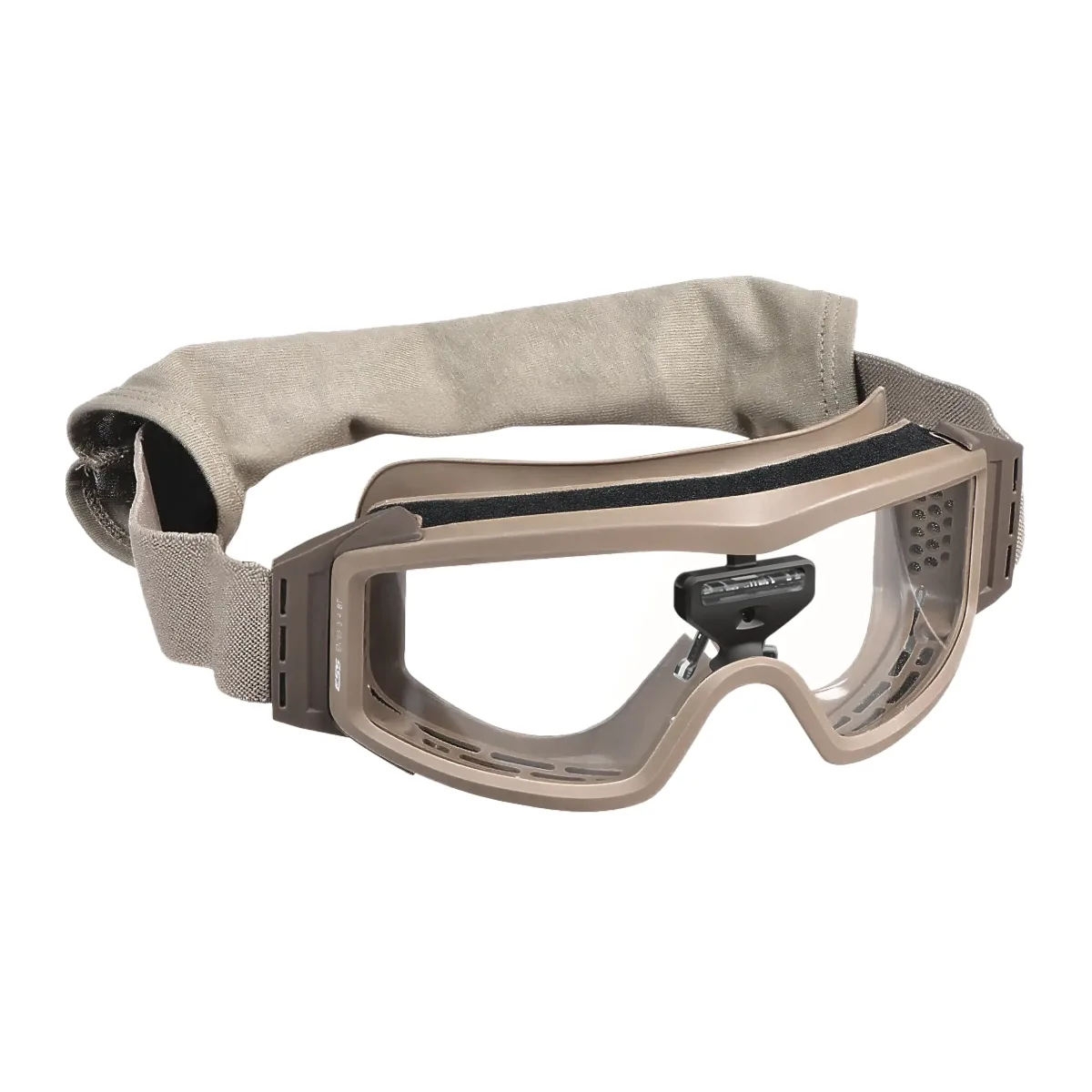

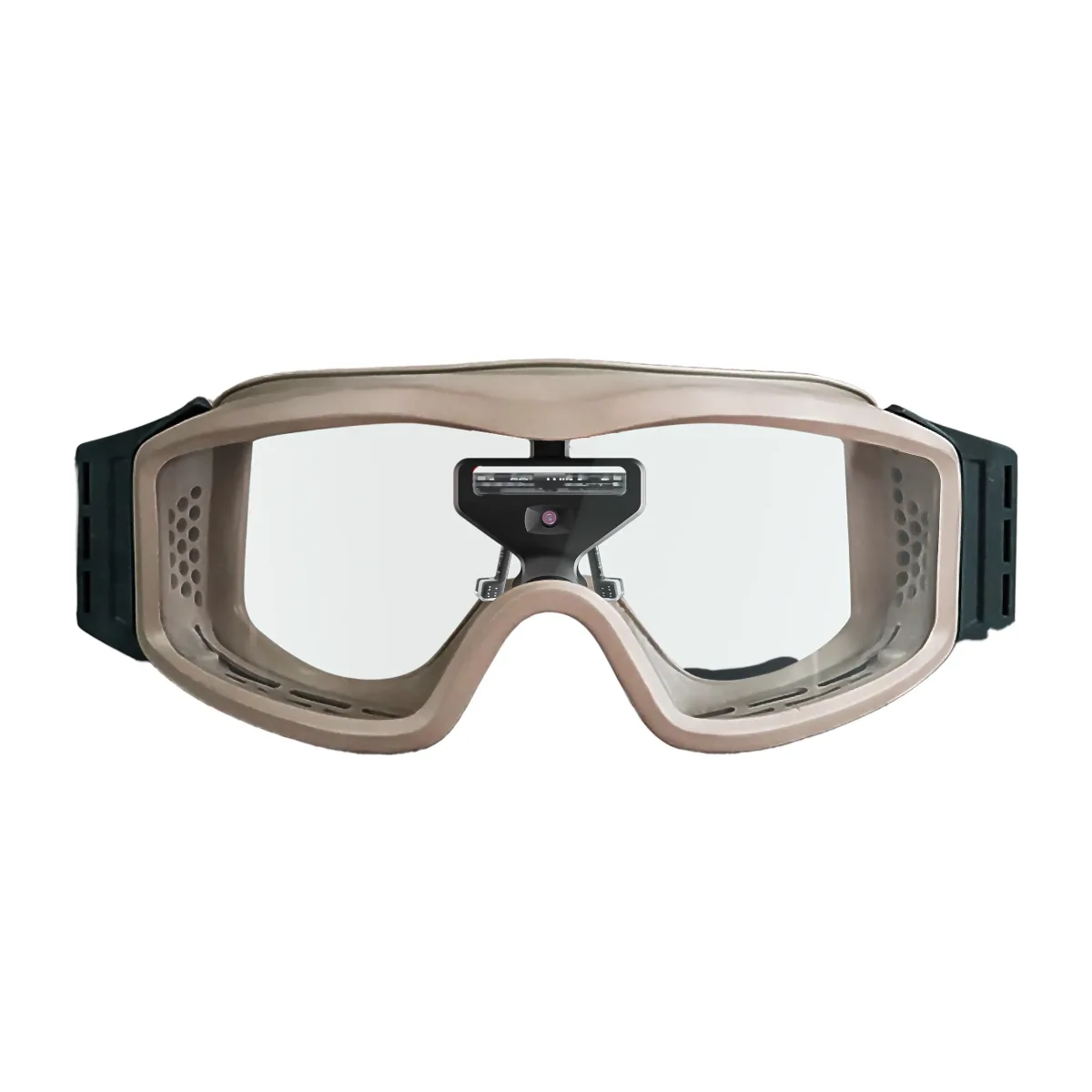

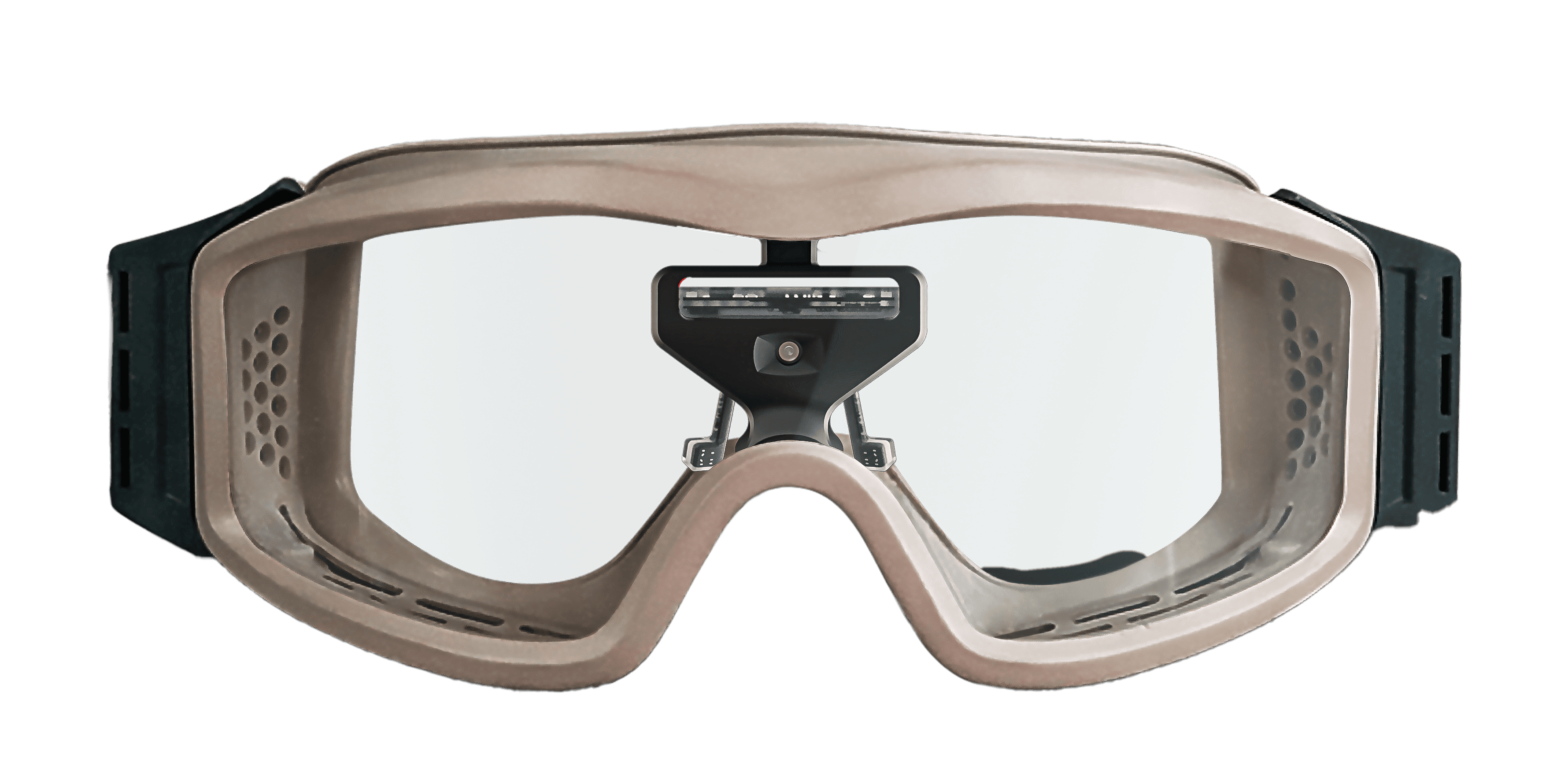

All Clear – Neon Eye Tracking Glasses

Eye tracking goggles for high risk professional performance.

  • Machine learning powered eye tracking system.
  • Mil-spec goggles from ESS with clear/plano lens. See google specifications
  • Android device for real-time gaze estimation, wearer management, recording, and real-time streaming.
  • Includes 30 minute onboarding video call.

All clear

Dimensions

H80 x W190 x D75 mm (not including strap)

Weight

135 g (including Neon module)

Material

Custom aluminum mount, goggle frame from ESS

Dimensions

LH55 x LW155 mm

Material

2.8 mm Polycarbonate with 100% UVA/UVB filtration

Compliant with U.S. MIL SPEC MIL-PRF-32432A, ANSI Z87.1-2015, CE EN 166 and U.S. Federal OSHA

Eye tracking for research and beyond

Pupil Labs are working hard to make eye tracking easy.

Their goal is to accelerate the development of eye tracking for real-world challenges so that any researcher or entrepreneur can just add eye tracking to their next study, prototype, or product.

Neon is designed to power scientific research and enable applications beyond the possibilities of today.

Neon removes barriers traditionally associated with eye tracking. It’s easy to use: no setup, no calibration. NeonNet, the deep learning gaze estimation pipeline, provides you with unprecedented data quality even in the most demanding conditions. The software is built for everyone from no-code to pro-code users.

No Calibration

Neon starts working the second you put it on. No need to fiddle around with nose pads or camera positions. No calibration is required before or during a recording.

Every Environment

Neon works in every environment and during all activities. From a bright sunny day to complete darkness.

Every Subject

Neon works for every subject. No matter what age, gender, or ethnicity. Eye makeup and contact lenses – no problem!

Scene Camera

The scene camera deserves special attention. It has a super wide field of view – 132° x 81° – capturing full HD video with a resolution of 1600 x 1200 px.

Audio

Integrated microphones add another dimension to understanding human behavior. Capture high quality audio to gain insight into the relationship between seeing, saying, and listening.

And much more

Built-in 110 Hz IMU

Gaze data

Fixations

Blink events

Eye rotation

Eye position

Pupil Diameter

Find out more about the technology

The Neon Module is all the eye tracking hardware you need in a small package.

High-speed eye cameras, wide-angle scene camera, stereo microphones, and IMU all encased in water-resistant silicone. The modular design enables a wide variety of frame shapes, sizes, and styles specific to your research needs. The module can be bought on its own or bundled together with one of the many frame options.

Neon Module

7 g
W: 40mm
H: 35mm
D: 10mm
