A wearable & flexible multi-channel fNIRS device for baby brain oxygenation measurement
*Hyperscanning not yet possible with iMotions Lab. Contact for more information.

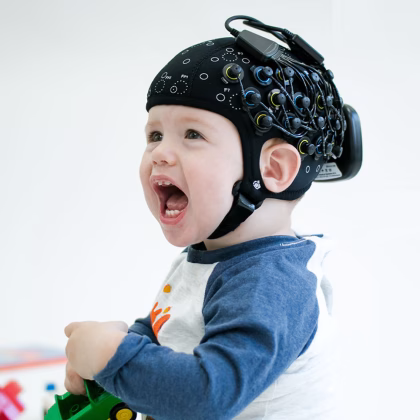

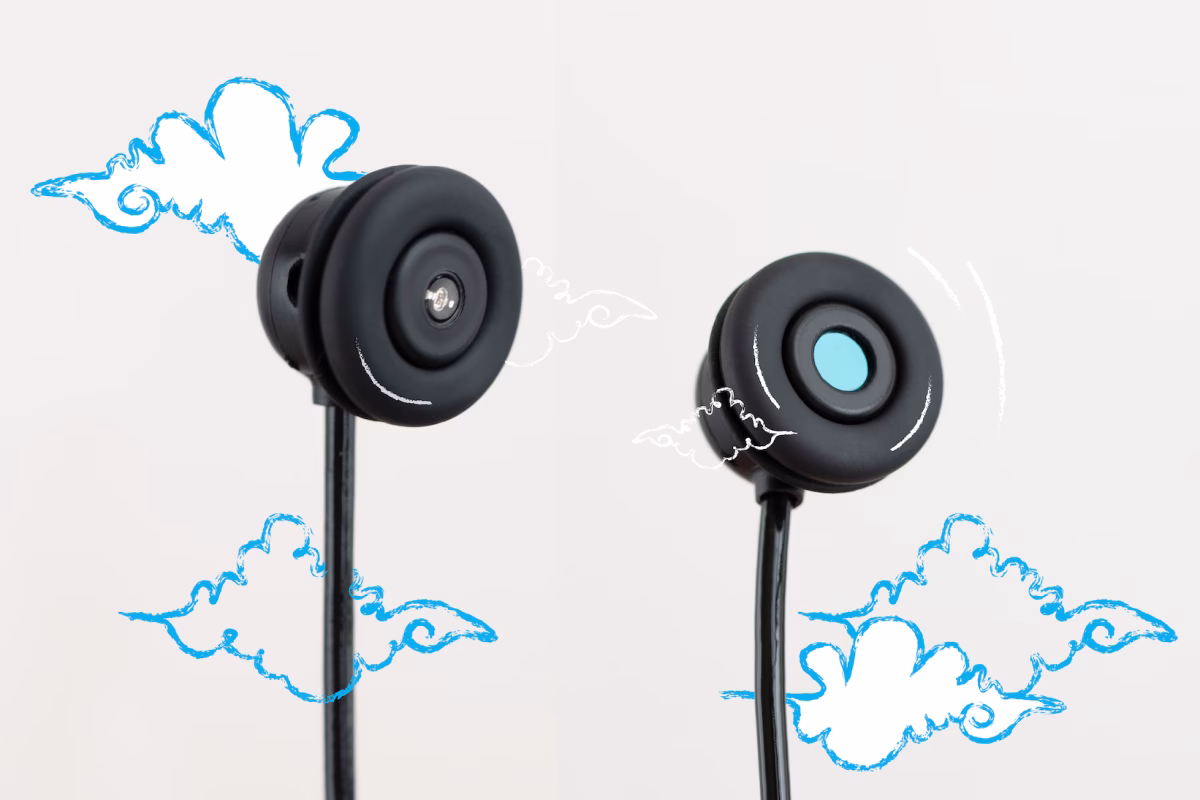

The BabyBrite system is designed to provide high-comfort to young infants. We aimed to achieve this by using flat optode tips and soft optode holders, which are crafted from biocompatible materials, for extra safe and gentle skin contact on babies.
The soft-click principle allows an easy & fast setup. Additionally, this principle allows to easily move hair aside when infants have lots of hair.
The BabyBrite is an optimized version of the new Brite MKII for infant research, making use of similar improved technology. This device allows researchers the flexibility to conduct studies in many research settings. The flexible template feature enables researchers to measure brain activity from any location on the infant head. The BabyBrite package comes with distance guards that ensure stable inter-optode distance and mounting solutions for lab and real-life interactions (e.g. car seat; parent lap, high chair, crawling around).
The BabyBrite only weighs 300 grams, which makes it ideal for babies that are freely moving or asleep. You can set up your research wherever you want whenever you want!
| Technology | Continuous wave Near-InfraRed Spectroscopy (NIRS) using the modified Beer-Lambert law |
| Relative Measures | Oxy-, deoxy-, and total hemoglobin concentration changes |
| Channels | Up to 27 |
| Template & Location | Any template for brain (anywhere on the head) |
| Inter-Optode Distance | Recommended 20-25 mm (20-55 mm may be possible) |
| Transmitters | 10 LEDs, each with 2 wavelengths |
| Receivers | 8 photodiodes |
| Wavelengths | Standard 760 and 850 nm, custom wavelength possible |
| Ambient Light Correction | Proprietary algorithm to filter out ambient light |
| Optode Holders | Comfortable soft-click optode holder system |
| Headcaps | Easycaps from 0-to-2-year-olds (sizes 34-36-38-40-42-44-46-48-50) |
| Dimension | 75 x 75 x 30 mm |
| Weight | 250 gram including battery and headcap |
| Environment | Operating temperature: 10 – 35 °C |
| Indicators | Power, measuring, battery status, bluetooth |
| Battery Life | Up to 3 hours with with fast-charging battery – extendable with our EverGo accessory |
| Sample Rate | Up to 150 Hz* |
| Orientation Sensor | 3-axis accelerometer and 3-axis gyroscope |
| Data Collection & Storage | Online, offline 100+ hours, local back-up of data |
| Data Acquisition & Analysis Software | OxySoft: including 3D extension and lab streaming layer (LSL); Brite Connect |
| Operating System | Windows 11 |
| Events | Online, offline or PortaSync |
| Electromagnetic Compatibility | Compatible with TMS, EEG, EMG, ECG |
| Hardware Sync Options | PortaSync, parallel cable, serial cable, Labstreamer |
| Software Sync Options | LSL, DCOM (e.g. Matlab, E-prime, Presentation) |
fNIRS provides a portable, non-invasive way to measure brain activity that tolerates movement, enabling researchers to study cognitive function in naturalistic, real-world environments where traditional scanners cannot be used.
